Filtration Applications

Authorized Channel Partner For AMIAD Water System :

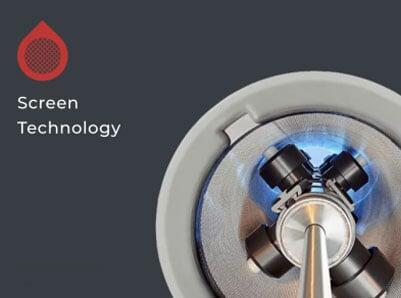

Screen Technology

Fast and efficient self-cleaning technology with continuous flow of filtered water. Suction-scanning screen technology combines focused flush with automation to provide 100% cleaning of the screen area. The success of this technology has established Amiad as a global leader in providing water filtration solutions. The sophisticated screen is the optimal combination of material strength, filtration efficiency and cleanability, allowing the accumulating filter cake to be rapidly and totally removed. Amiad’s suction-scanning technology enables optimal cleaning with recovery rates of up to 99%.

Water Types

High efficient surface filtration, suitable for all water types, ideal for removing high levels of mineral suspended solids.

Filtration Element

Unique multi-layer weave wire stainless steel screens.

Self-Cleaning

Triggered by the accumulation of a filter cake and performed only as needed for minimal water and energy waste.

Filtration Degree

10-10,000 micron.

Advantages

Eliminates the need for isolating the filter during the self-cleaning cycle enabling uninterrupted process flow.

Highlights

Highly efficient, low operating pressure, minimal water and energy waste.

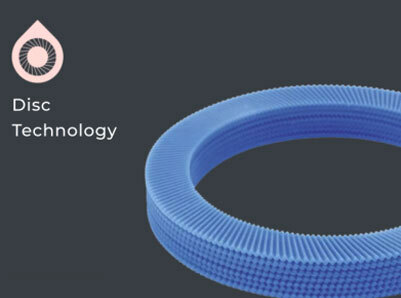

​​Disc Technology

​​All polymeric depth filtration with high dirt holding capacity, effective cleaning and consistent filtration results. Spin KlinTM disc technology uses thin, color-coded polymeric discs that are diagonally grooved on both sides to a specific micron size.
A series of these discs are stacked and compressed on a specially designed spine, with the top groove in the opposite to the groove below. This creates a filtration element with a significant series of channels, effectively trapping the solids. The disc stack is enclosed in corrosion and pressure resistant housing.The Spin KlinTM disc filtration system is designed for long-term and simple operation.

Water Types

Highly efficient depth filtration, suitable for all water types, with excellent removal capacity of high loads of organic suspended solids.

Filtration Element

High quality color-coded polymeric grooved discs, diagonally grooved on both sides to a specific micron size, stacked and compressed on the unique Spin Klin™ spine.

Self-Cleaning

Pressure is released, raising the cylinder and decreasing the compression on the discs. Jets of filtered water are forced through the nozzles along the spine, dislodging the trapped solids which are then flushed out.

Filtration Degree

10-400 micron.

Advantages

Highly efficient, automatic depth and surface disc filtration technology for handling high dirt loads, especially organic.

Highlights

Precise and automatic filtration, cost effective, polymeric corrosion free components, minimal and simple maintenance.

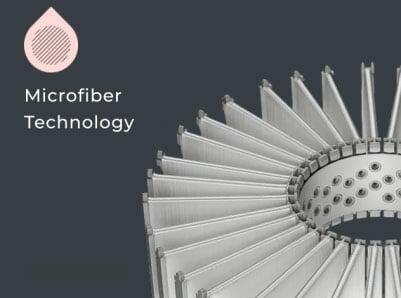

​​Microfiber Technology

Fine microfibers tightly wound in layers around grooved plastic form the thread cassettes. Amiad’s microfiber technology uses a unique thread cassette – fine threads are wound over a rigid grooved base plate that are mounted on hollow collector pipes. Water flows through the thread layers into the grooves that channel the water to specially designed outlets. The base plate supports the thread layers and plays a major role in the cleaning process of the media.

Water Types

3-D filtration with high dirt load capacity, ideal for removing organic matter.

Filtration Element

Innovative filter media consisting of multi-layered fine threads wound over a grooved rigid plastic cassette.

Self-Cleaning

Flush nozzles spray both sides of the cassette with high powered jet streams, penetrate the microfiber layers and dislodge the debris.

Filtration Degree

2-20 micron.

Advantages

Cartridge filter performance without the need for cartridge filter replacement.

Highlights

TSS and turbidity reduction for potable & wastewater applications, effective removal of invasive species.
